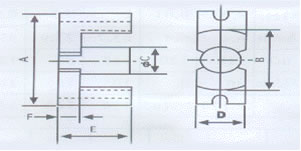

EC、EER型铁氧体磁芯参数
|
型号 |
A |
B |
φC |
D |
E |
F |
E-E |
A e |
Le |
V e |
AL |
μe |
|
EC90 |
91 |
71.2 |
30 |
30 |
45 |
9.6 |
91/90 |
6.24 |
21.6 |
13.50 |
5550 |
— |
|
EC70 |
71 |
43.4 |
16.8 |
16.8 |
34.5 |
11.7 |
71/69 |
2.79 |
14.4 |
40.1 |
4800 |
1963 |
|
EIC70 |
70 |
44 |
16.2 |
16.2 |
29.8 |
6.8 |
70/39 |
2.79 |
— |
— |
— |
— |
|
EC52 |
53 |
32.1 |
13.75 |
13.75 |
24.2 |
8.7 |
53/49 |
1.8 |
10.5 |
18.8 |
4200 |
1942 |
|
EER49 |
49 |
37.4 |
16.9 |
16.9 |
27 |
8.4 |
49/54 |
2.46 |
11.8 |
29.09 |
5700 |
1900 |
|
EER49 |
49 |
37 |
16.9 |
16.9 |
21.5 |
6.5 |
49/43 |
2.55 |
10.0 |
25.5 |
5700 |
1900 |
|
EER49 |
49 |
37.3 |
17 |
17.2 |
19 |
6.5 |
49/38 |
2.291 |
9.72 |
22.26 |
5500 |
1860 |
|
EER42 |
42 |
32.5 |
17.3 |
19.5 |
21.3 |
5.9 |
42/43 |
2.40 |
9.86 |
23.64 |
5760 |
1900 |
|
EER42 |
42 |
31.3 |
15.1 |
15.5 |
22.4 |
5.7 |
42/45 |
1.825 |
10.18 |
18.57 |
4200 |
1860 |
|
EER40 |
40 |
29.4 |
13.3 |
13.3 |
22.4 |
7 |
40/45 |
1.528 |
10.24 |
15.64 |
3450 |
1840 |
|
EER28 |
28 |
21.9 |
10 |
11.4 |
17 |
4.3 |
28/34 |
0.814 |
7.55 |
6.14 |
2500 |
1900 |
